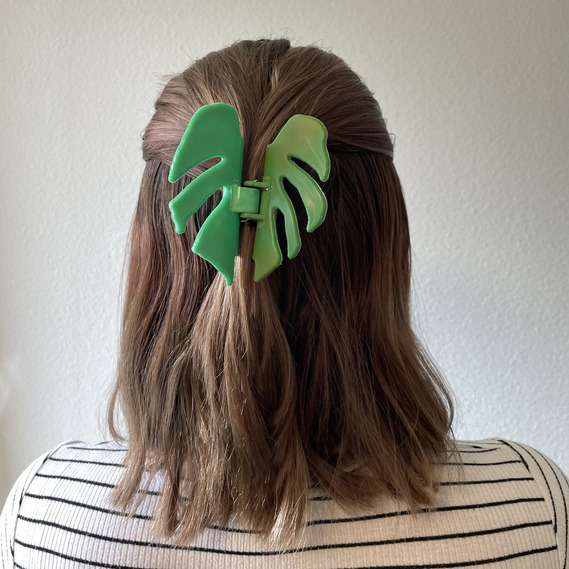

MONSTERA HAIR CLIP
ME325: Making Multiples: Injection Molding
Spring 2023
Materials
- Polypropylene
- Steel Spring and Pin

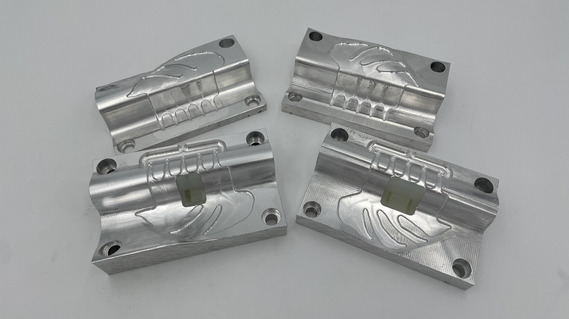

- Aluminum 6061 Mold
Processes
- CNC Machining
- Injection Molding
- SLA 3D Printing
Design Goal
Design an injection moldable hair clip inspired by monstera leaves. The design should utilize my new understanding of injection molding manufacturing as covered in this course.
Design Features
- Non-linear parting line
- SLA 3D printed inserts
- Right and left molds
- Surface modeling
